Thinkcar Thinkscan Max Full System Professional OBD2 Scanner
Thinkcar Thinkscan Max Full System Professional OBD2 Scanner
Couldn't load pickup availability
Thinkcar Thinkscan Max Full System Professional OBD2 Scanner Automotive 28 Reset Function
THINKSCAN MAX Introductions
1.Full System Diagnostic for 124 Car Brands:
There are many other full system diagnostic scanners in the market, but most of which only supports 50-60 car makes. However, thinktool mini code reader scan tool will be able to perform full system diagnosis on 124 car makes, offering repairshops more choice and chance no matter what kinds of vehicles you encounter.
2.28 Maintenance Reset Functions: All 28 Reset Functions are Life-time Free Update !!!
Besides diagnostic function, thinktool mini can also be a maintenance reset tool, then you don't need to buy another service tool. The 16 commonly-used function includes: oil reset, Sunroof reset,EPB service, ABS bleeding, Injector Coding,Suspension reset, Gearbox reset,AFS Headlamp Reset,Throttle Adaptation,Gear Learning, EGR Reset, BMS, SAS,DPF, IMMO, Basic TPMS Reset service etc.
3.Actuation Test,Bi-Directional Test and ECU Coding Supports :( Note : need buy them additional )
Actuation Test Supports ,this function is used to test whether the execution components in the electronic controlsystem can work normally. Bi-Directional Test and ECU Coding also support ,but need buy them in ThinkStore $49.95/year (buy from ThinkCar Store directly)

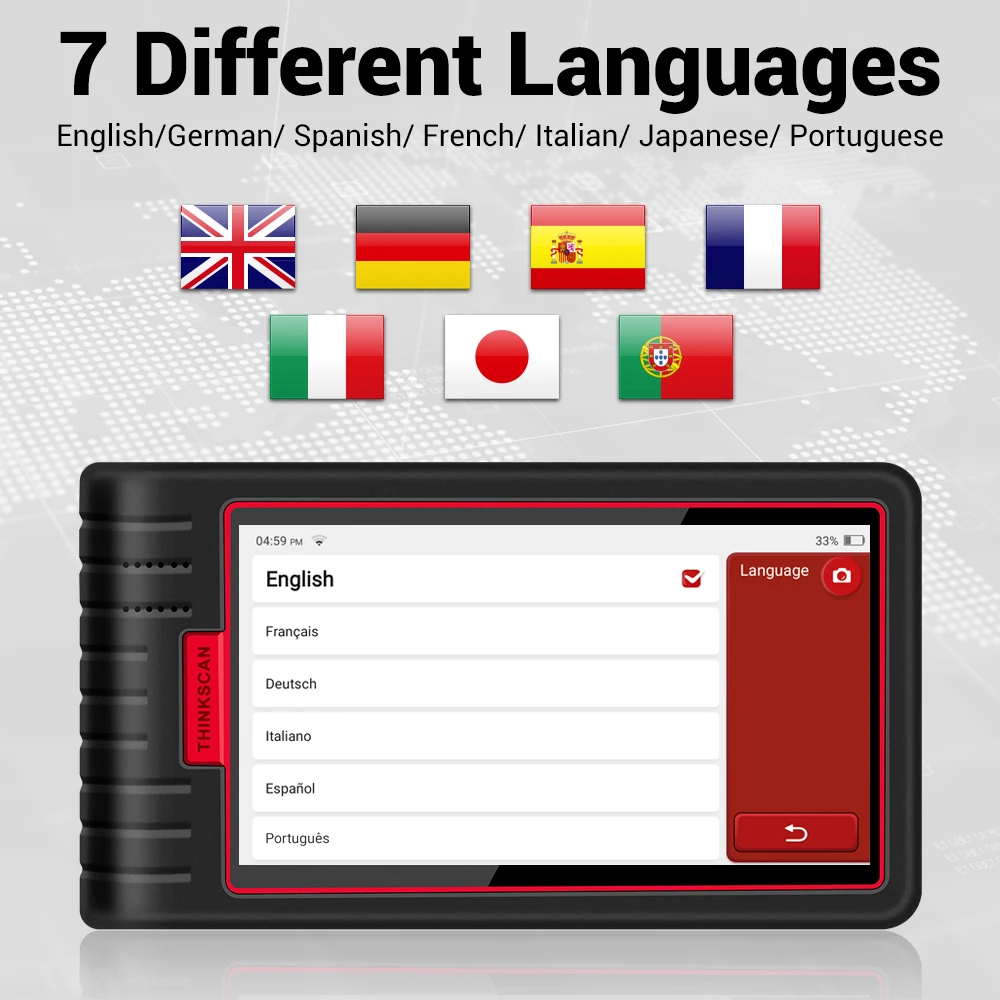

4.ThinkCar ThinkScan Max Language :
English , German , Spanish , French , Italian , Japanese , Portuguese
5.ThinkCar ThinkScan Max Update & Warranty :
Update :1 Year Free Update Warranty :5 Years warranty
6.THINKACAN MAX Supports FULL OBDII Functions
Through the simple Bluetooth communication between diagnostic dongle and the hostcomputer, it achieves full car model and full system vehicle trouble diagnosis,whichinclude Reading DTCs, Clearing DTCs,Reading Data Stream
7.Wireless Connection, Bluetooth Diagnosis:
Many traditional diagnostic scan tools are equipped with diagnostic cables and you have to connect the car scanner with the OBDII port via cable during the diagnosis, which limits the diagnostic distance within 1m. While thinktool mini offers wireless connector, making it convenient and efficient during the work.
Smart Diagnosis：Auto VIN Scan identify
Vehicle1 Read Version Information : read the current version information of the car ECU 2 Read Fault Code: Help you quickly identify the cause of the vehicle breakdown 3 Clear Fault Code: serves to clear the DTC of the ECU memory of the tested system. 4 Read Data Stream:Help you read and display real-time data and parameters of the car ECU ,learn the vehicle’s performance and offer maintenance suggestions 5 Actuation Test: Test whether the execution components in the electronic control system can work normally. 6 Keep Diagnosis History: Keep all previous records on the screen no need to start anew
ThinkScan Max supports Full systems
Engines/Auto Transmission/Airbags/Immobilizer/Key Coding/ABS/Cruise Control/Instruments/ Self Leveling Suspension systems/Seats/Doors/Gateway/Steering Angle/Air Suspension/Body Systems/Electronic Power Steering & Motor Assisted/Power Steering/Tyre Pressure/Rain Sensors/4WD System/Stabilizer/Intelligent Parking Assist/Door Motors/Audio Systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/ DPF Reset/Electric Windows/Plip Programming/Heated Rear Window/Xenon Headlights/Wash Wipe/Fuel Burning Heater/Transfer Box/Seat Memory/Oil Life Service Reset/Sliding Doors/Electronic Throttle/Navigation System/Rollover Sensor/Cruise Control/ Multi Function Steering Wheel/Aux Heating/Electronic Parking Brake/Clutch Electronics etc.( Great for car repair shops and mechanics to improve business)
Full 10 Mode OBDII/EOBD/JOBD Car Diagnostics
1.Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs) 2.Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors. 3.Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data. 4.I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing. 5.Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display. 6.View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs. 7.O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer. 8.On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems. 9.Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc. 10.Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.
Thinkscan Max Supported 28 Kinds of Reset Service
1.Oil Reset ：allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil. 2.EPB Reset ： is important in the maintenance of electronic braking system's safety and efficiency. 3.BMS Reset: allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle. 4.DPF Reset: specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit. 5.SAS Reset: helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration. 6.TPMS Reset :makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors. 7.IMMO reset: it is mainly used to disable the lost vehicle keys and program a new replacement key fob. 8.ABS Bleeding: ABS brake bleeding to get a firm brake pad after air exhaustion. 9.Throttle reset: The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair 10.Injector Coding: Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off. 11.Gear Learning After the engine ECU, crankshaft position sensor, or crankshaft flywheel is replaced, or the DTC 'tooth not learned' is present, tooth learning must be performed. 12.Suspension Matching Adjust the vehicle height sensor for level calibration. 13.Sunroof Initialization: Set the sunroof lock off, close in rain, memory function of sliding 1 tilting sunroof, outside temperature threshold, etc. 14.Battery Matching: By clearing the original breakdown information about the lack of battery power,rematch the battery. 15.A/F Reset Applied to set or lean Air/Fuel ratio parameters . 16.Steering Angle Reset helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
ThinkCar ThinkScan Max Supports about 124 Car software list :
Q&A
Q: Why does it have no responses when connected to a car computer? A: Check whether the connection with the vehicle diagnostic socket is normal, whether the ignition switch is on, and whether the tool supports the car. Q: Why does the system stop while reading the data stream? A: This may be caused by loose diagnostic dongles. Please unplug the dongle and reconnect it firmly. Q:Communication error with vehicle ECU? A: Please confirm: 1.Whether diagnostic dongle is correctly connected. 2.Whether ignition switch is ON. 3. If all checks are normal, send vehicle year, make, model and VIN number to us using Feedback feature. Q: Why does the host screen flash when the engine ignition starts? A: It is normal and caused by electromagnetic interference. Q: How to upgrade the system software? A: 1. Start the tool and ensure a stable Internet connection. 2.Go to "Set up" -> "App Update", click "OTA" and then click "check version" to enter the system upgrade interface. 3. Complete the process by following the instructions on the screen step by step. It may take a few minutes depending on the internet speed. please be patient. After successfully completing the upgrade, the tool will automatically restart and enter the main interface. Q: Please explain the account and points. A: To use THINKSCAN Max, you need to register an account. Each account has the opportunity to earn points by recommending others to buy products and participating in official events. 1 point can be deducted for 1 dollar when purchasing products or services Q: How to capture the screenshot? A: A"Screenshot" icon is always floating on the screen. Tap it to capture the current screen and the screenshot is saved in the Think File module.
